Wonderware ArchestrA Universal APACS Direct Server

Download Now

The Wonderware ArchestrA Universal APACS Direct Server provides the missing connectivity Siemens Moore APACS owners need to be able to take advantage of the latest versions of the popular Invensys Wonderware HMI. Optimized for high speed data exchange and simple

Quick Links:

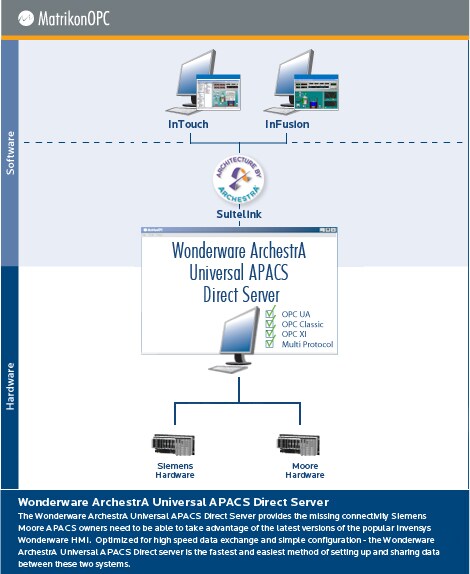

Architecture Diagram
Technical Details

configuration - the Wonderware ArchestrA Universal APACS Direct server is the fastest and easiest method of setting up and sharing data between these two systems.

Unlike the APACS API which is still sold but no longer maintained and which does not support Windows versions beyond Windows 2003 - the Wonderware ArchestrA Universal APACS Direct server supports all the versions of Windows needed to run the latest versions of the Wonderware HMI, supports virtualization, and includes expert MatrikonOPC support available 24/7 around the world - Key factors for APACS owners and project teams to consider when looking to reduce project risks.

With built in SuiteLink and OPC connectivity to ArchestrA, this OPC Server delivers the high speed data performance often required for DCS migration or console replacement projects. In addition, the Wonderware ArchestrA Universal APACS Direct Server automatically finds all Siemens Moore MBUS/MNET interfaces over Ethernet and sets up connections for them – making it easier than ever to use Wonderware applications together with the APACS DCS.

Benefits and features:

Native SuiteLink support for easy System Platform communication
Direct integration with Wonderware ArchestrA Configuration Console for simplified configuration and maintenance.
Throttling options at the APACS resource level
Advanced error recovery based on the OPC Quality for OPC Items
Advanced OPC Quality display customization for better decision making.
Supports standard Siemens Moore tag syntax making migration easy
Get timestamps direct from the device or from the local PC - your choice
With multiple NIM's, supports load-balancing and redundancy
Persistent OPC Server tag address space for fast tag additions
Auto detection or manual addition of NIM's
Can be used as part of a replacement for Aimax HMI
OPC Client plug-in (optional).
Supports Windows 2000, 2003, XP, 2008 and Windows 7
Supports Windows 32-bit and 64-bit
OPC UA support with integrated Address Space.
Enables WW ArchestrA to connect to 3rd party OPC Servers via its built-in OPC Client plug-in.*
Full support for OPC Classic specifications: OPC DA, HDA, A&E and OPC UA
Superior OPC security down to the per-user-per-item level to protect your DCS data sources.*
Built-in device level redundancy for maximum reliability.
Advanced calculation engine for complex control system operations.
Off-line simulation

*Optional

Built to support Wonderware users’ future needs, the Wonderware ArchestrA Universal APACS Direct Server allows WW users to quickly expand their connectivity by adding the support for more protocols to their ArchestrA system via standard UCS plug-ins. This ensures that WW users have an unmatched and the best connectivity experience with a wide range of systems.

MatrikonOPC is a Wonderware Certified Software Partner since 2008. MatrikonOPC and Wonderware work closely to maximize the value delivered to the end-users by providing secure, reliable, and intuitive products that fit customers’ needs.

OPC Third Certified The Wonderware ArchestrA Universal APACS Direct Server is OPC Certified!
OPC Certification is the process of ensuring that applications meet the standards specified by the OPC Foundation. OPC Certification requires extensive testing to ensure true interoperability. OPC Certification means multi-vendor system interoperability is guaranteed. If your OPC products are not certified, you need to ask your vendor what sort of guarantees they offer.

Wonderware ArchestrA Universal APACS Direct Server

OPC Specifications
